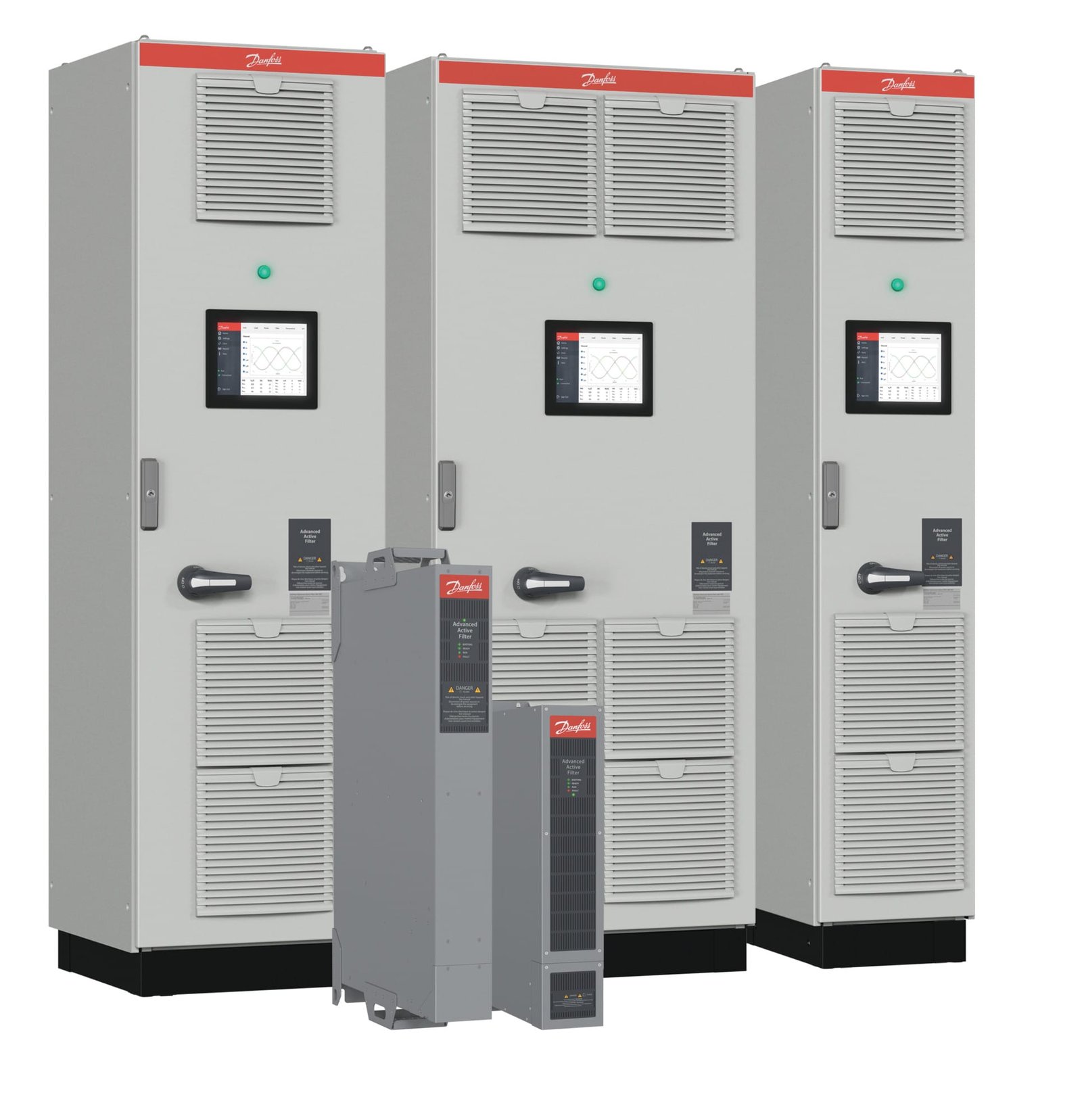

AAF 007, 3~, Advanced Active Filter
AAF-0073B04-55A0E20
380-480 V AC, 55 A
IP20/Open Type
Mains input device: None
Control panel: None
Door signal lights: None
Current transducer: None
module / module package
Other options according to model code
Model code:
AAF-0073B04-55A0E20
The AAF 007 filter ensures low THDi levels, higher power factor, and load balance in systems using iC7, VLT® and VACON® drives.
| Gross weight | 24.2 Kilogram | ||
| Net weight | 17.2 Kilogram | ||
| Volume | 134.4 Liter | ||
| EAN | 5715253296517 |
| Product View (Switch) | GLBL | Globad (Standard) | |
| Product group | AAF-007 | AAF 007 | |
| Product type | 3B | 3~, Advanced Active Filter | |
| Mains voltage | 04 | 380-480 V AC | |
| Current rating | -55A0 | 55 A | |
| Protection rating | E20 | IP20/Open Type | |
| Mains input device | +AJXX | None | |
| Control panel | +BFXX | None | |
| Product software ID | +ECXXX | Latest released version | |
| Documentation language | +EHXX | Multi-language | |
| Door Signal lights | +IIXX | None | |
| Current Transducer | +VDXX | None | |
| Frame designation | AAF01 | module / module package | |
| Modelcode01 | AAF-0073B04-55A0E20 | ||
| Typecode Part 1 | AAF-0073B04-55A0E20 | ||
| Typecode Part 2 | -000098244 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Calculated Gross Weight [kg] | 24.2 | ||
| Calculated Package Weight | 7 | ||
| Calculated Net Weight [kg] | 17.2 | ||
| Salescode part 1 | AAF-0073B04-55A0E20 | AAF-0073B04-55A0E20 | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Plant | ERR01 | ERR01 | |
| ECCN EU | Y901 | Y901 | |
| ECCN US | EAR99 | EAR99 | |
| DrivePro category | EXCH | Exchange Unit |
