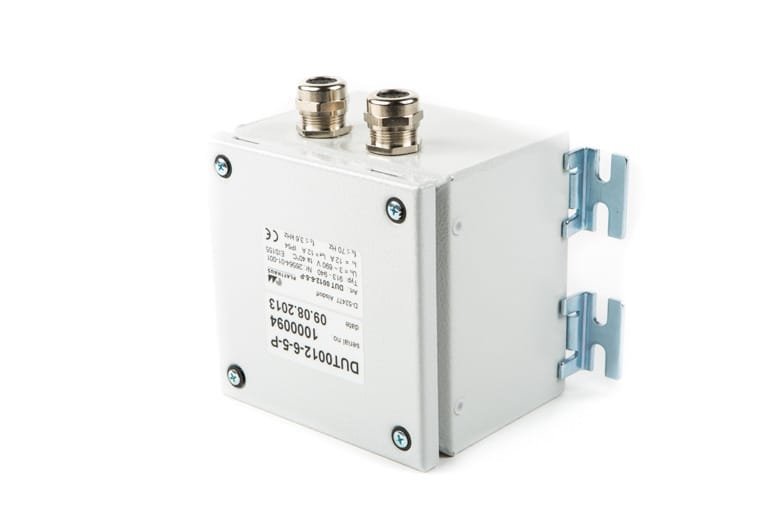

DUT-0012-6-5-P, Du/dt 12A 690V IP54

DUT-0012-6-5-P dU/dt filter for VACON NX. Voltage: 200 V – 690 V Continuous current: 12 A Max output frequency: 70 Hz without derating / 320 Hz with derating Max switching frequency fs : 3,6 kHz @ 200V – 500V, 1,5 kHz @ 525 V – 690V Typical losses: 45 W Degree of protection: IP54 Dimensions H x W x D: 175 x 206 x 132 mm Weight: 5,5 kg
