Frequency Converter
FC-102P1K1T4Z66H1XGC1OXSXXXXALBXCXXXXD0

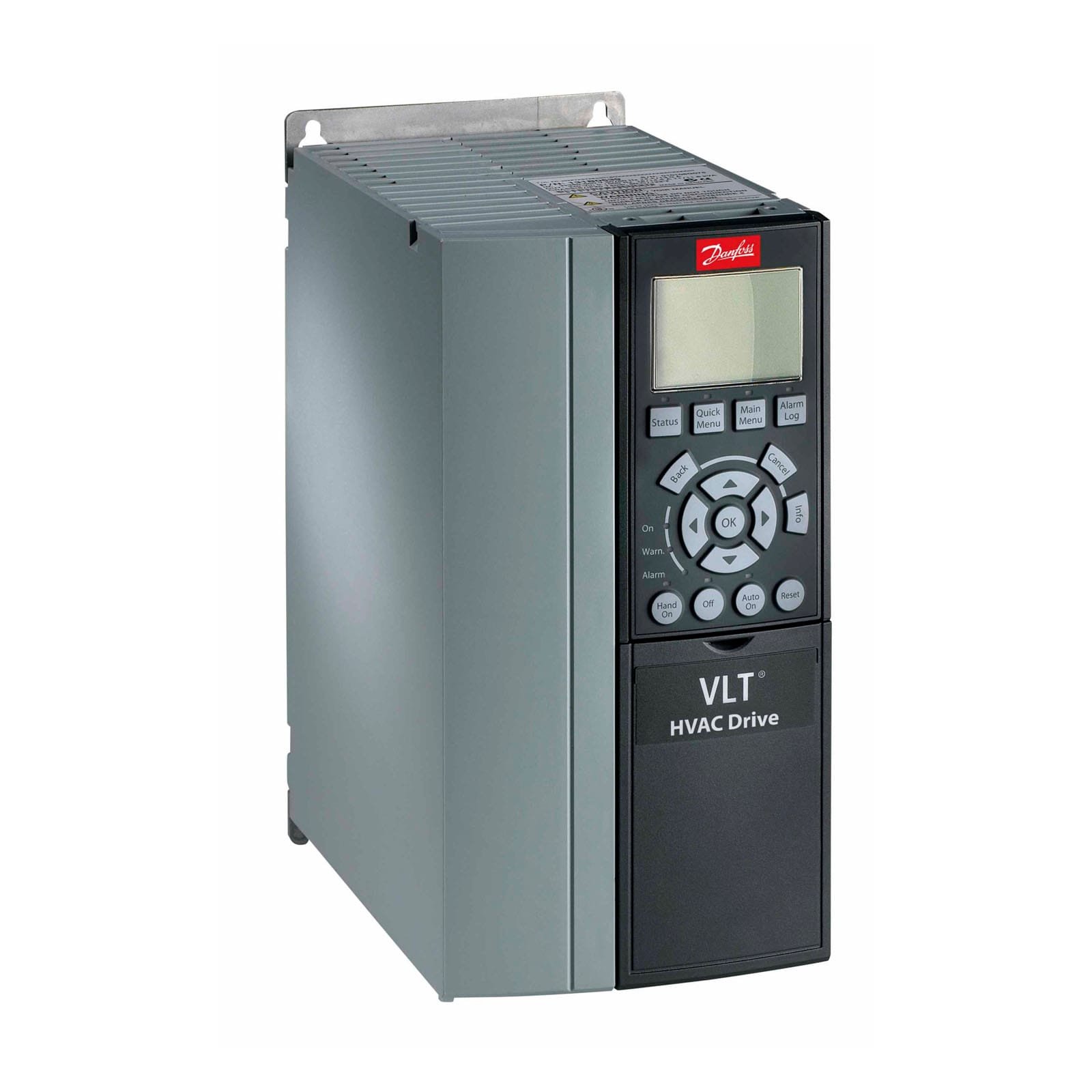

VLT® HVAC Drive FC-102
(P1K1) 1.1 KW / 1.5 HP,
Three phase, 380 – 480 VAC,IP66 / Type 4X A4 Frame
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
Frame: A4
PROFINET MCA 120, No B Option
No C1 option, MCB-107 24V DC backup
Other options according to Model Code
Model code:
FC-102P1K1T4Z66H1XGC1OXSXXXXALBXCXXXXD0
Danfoss VLT® HVAC Drive FC-102 Drive is dedicated toventilation, heating, and refrigeration applications. With a wide rangeof powerful standard and optional features, the Drive provides thelowest overall cost of ownership.
| Gross weight | 8.896 Kilogram | ||
| Net weight | 8.16 Kilogram | ||
| Volume | 52.36 Liter | ||
| EAN | 5715253813424 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® HVAC Drive FC- | |
| Series | 102 | 102 | |
| Power Rating | P1K1 | (P1K1) 1.1 KW / 1.5 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 – 480 VAC | |
| Enclosure | Z66 | IP66 / Type 4X A4 Frame | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake – Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 1 | Mains Disconnect | |
| Adaptation A | O | Metric thread cable entry | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | A4 | A4 | |
| Product Catalog | GLBL | Global (Standard) | |
| Typecode Part 1 | FC-102P1K1T4Z66H1XGC | ||
| Typecode Part 2 | 1OXSXXXXALBXCXXXXD0 | ||
| Power 110% (NO) [KW] | 1.1 | 1.1 | |
| Height [mm] | 391,0 | 391,0 | |
| Width w/ no C options [mm] | 200,0 | 200,0 | |
| Depth [mm] | 177,0 | 177,0 | |
| Depth with Option A/B [mm] | 177,0 | 177,0 | |
| kVA | 2.08 | 2.08 | |
| Power Loss NO [W] | 58 | 58 | |
| Power Loss NO [W] | 58 | 58 | |
| Continuous Current (NO) [A] | 3 | 3 | |
| Intermittent Current (NO) [A] | 3.3 | 3.3 | |
| Continuous Current (NO) [A] | 2.7 | 2.7 | |
| Intermittent Current (NO) [A] | 2.97 | 2.97 | |
| Calculated Gross Weight [kg] | 8.896 | ||
| Calculated Net Weight [kg] | 8.16 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-102P1K1T4Z66H1XGC | ||
| Modelcode02 | 1OXSXXXXALBXCXXXXD0 |
