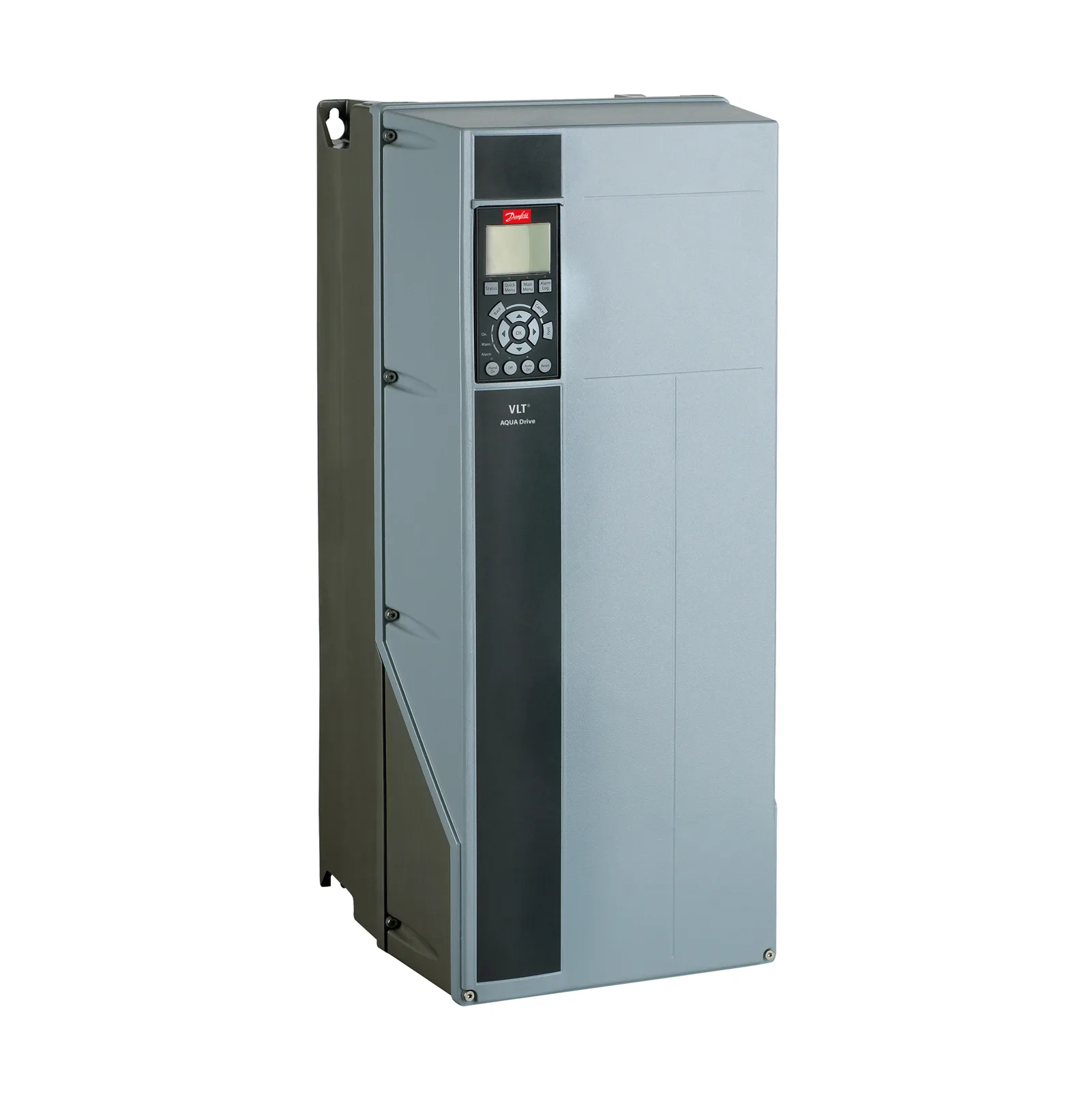

Frequency converter
FC-202N132T4E20H2TGC7XQSXXXXANBXCXXXXDX
VLT® AQUA Drive FC-202
(N132) 132 KW / 200 HP,
Three phase, 380 – 480 VAC,(E20) IP20 / Chassis
RFI Filter
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
Frame: D3H
EtherNet/IP MCA 121, No B Option
No C1 option, No D option
Other options according to Model code
Model code:
FC-202N132T4E20H2TGC7XQSXXXXANBXCXXXXDX
| Gross weight | 0.24 Kilogram | ||
| Net weight | 0.24 Kilogram | ||
| EAN | 5715253805610 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | N132 | (N132) 132 KW / 200 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 – 480 VAC | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake – Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | Q | Heat-sink access | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AN | EtherNet/IP MCA 121 | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | D3H | D3H | |
| Typecode Part 1 | FC-202N132T4E20H2TGC | ||
| Typecode Part 2 | 7XQSXXXXANBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 110 | 110 | |
| Power 110% (NO) [KW] | 132 | 132 | |
| Height [mm] | 909,0 | 909,0 | |
| Height w/ Regen/Loadshare [mm] | 1004,0 | 1004,0 | |
| Width w/ no C options [mm] | 250,0 | 250,0 | |
| Depth [mm] | 375,0 | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | 375,0 | |
| kVA | 180 | 180 | |
| Power Loss NO [W] | 2954 | 2954 | |
| Power Loss NO [W] | 2724 | 2724 | |
| Power Loss HO [W] | 2289 | 2289 | |
| Power Loss HO [W] | 2051 | 2051 | |
| Continuous Current (NO) [A] | 260 | 260 | |
| Intermittent Current (NO) [A] | 286 | 286 | |
| Continuous Current (NO) [A] | 240 | 240 | |
| Intermittent Current (NO) [A] | 264 | 264 | |
| Continuous Current (HO) [A] | 212 | 212 | |
| Intermittent Current (HO) [A] | 318 | 318 | |
| Continuous Current (HO) [A] | 190 | 190 | |
| Intermittent Current (HO) [A] | 285 | 285 | |
| Calculated Gross Weight [kg] | 0.24 | ||
| Calculated Net Weight [kg] | 0.24 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | D801 | D801 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-202N132T4E20H2TGC | ||
| Modelcode02 | 7XQSXXXXANBXCXXXXDX |
