VLT® DriveMotor FCP 106
4.0 kW /5.5 HP, Three phase 380-480 VAC
Standard IP66/UL type 4X
Integrated RFI Class A1/B
No option
Frame: MH2
Model code:
FCP106N4K0T4C66H1FSXXAX0

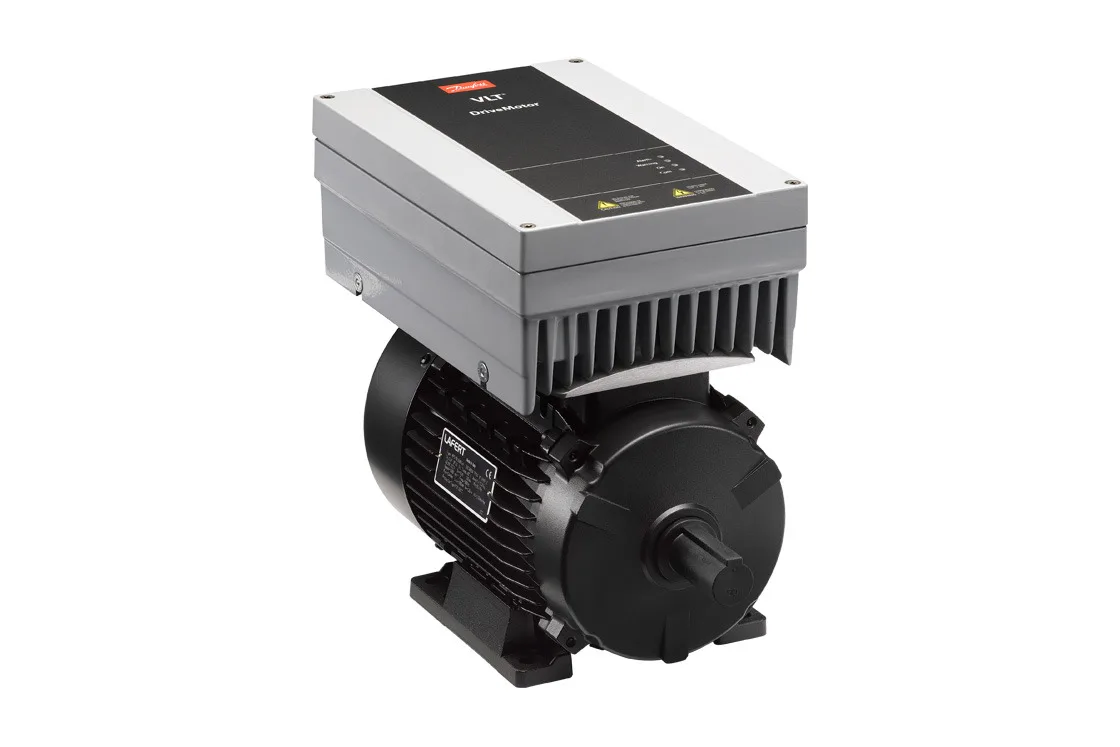

“VLT® DriveMotor FCP 106 is a standalone drive for
mounting on any standard induction or permanent magnet motor.
FCP 106 provides efficient control of motors in the
0.55 – 7.5 kW range with a wide range of standard
integrated pump and fan features.
Note: Order the FCP 106 Adapter Plate or FCP 106
Wall Mounting Plate separately as accessories.”
| Gross weight | 6.5 Kilogram | ||
| Net weight | 6.2 Kilogram | ||
| Volume | 21.28 Liter | ||
| EAN | 5710108080143 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FCP | VLT® DriveMotor FCP | |
| Series | 106 | 106 | |
| Power Size | N4K0 | 4.0 kW /5.5 HP | |
| Voltage | T4 | Three phase 380-480 VAC | |
| Enclosure | C66 | Standard IP66/UL type 4X | |
| RFI Filter | H1 | Integrated RFI Class A1/B | |
| Fan Option | F | With Fan | |
| Special Version | SXX | Latest release – std. software | |
| Options | AX | No option | |
| Memory module | 0 | Memory module | |
| Frame Size | MH2 | MH2 | |
| Typecode Part 1 | FCP106N4K0T4C66H1FSXXAX0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| HELP CHAR | 0 | ||
| Product Hierarchy | 87D4569702036 | ||
| Product View (Default) | Global (Standard) | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FCP106N4K0T4C66H1FSXXAX0 | ||
| Recommended Plant | ERR01 | ERR01 | |
| DrivePro category | EXCH | Exchange Unit |
