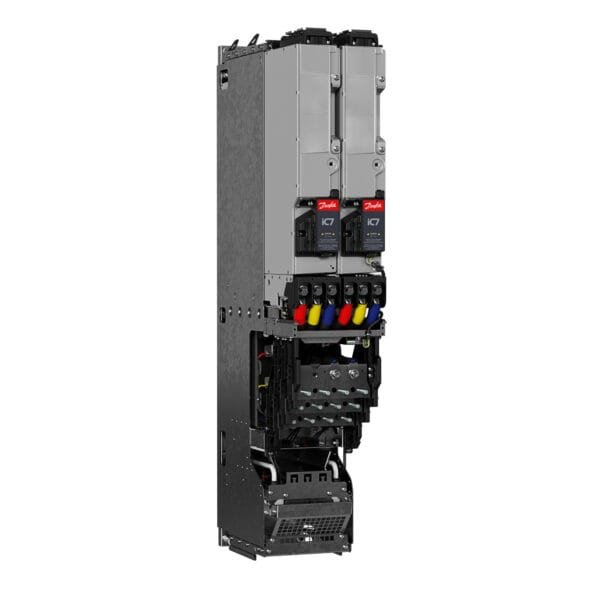

iC7-Marine
System module, liquid-cooled
IC7-60SL3AB5-1500E00F4+AEZ3+AJFX+AKFX+ANN1+AONH+BAMT+BDC1+BEXX+BK15+BLA0+CAX0+CBX0+CCX0+DAMA+EGIN+EHEN
IP00/Open Type, Frame:2xAR12L
3~, regenerative, AFE, 380-500 V AC / 465-800 V DC,1500 A
EMC category: C4 category
None
Standard I/O: I/O and Relay Option OC7C1
Modbus TCP OS7MT
Functional Safety: None, not upgradable
Other options according to model code
Model code:
IC7-60SL3AB5-1500E00F4+AEZ3+AJFX+AKFX+ANN1+AONH+BAMT+BDC1+BEXX+BK15+BLA0+CAX0+CBX0+CCX0+DAMA+EGIN+EHEN
iC7 series air-cooled and liquid-cooled system modules are designed forfast integration, and powerful shaft and grid performance. They areamongst the most compact drives available on the market and offerversatile performance combined with embedded industrial IoT security.They offer a wide range of functionalities for reliable performance indemanding industrial applications. Liquid-cooled system modules coverthe power range 160-6000 kW at 525-690 V, with IP00 protection rating(IP55 for power units excluding power terminals). Air-cooled systemmodules cover the power range 200-1400 kW at 380-500 V, with IP00protection rating.
| Gross weight | 690 Kilogram | ||
| Net weight | 585 Kilogram | ||
| EAN | 5715253379470 |
| Product series | +DAMA | iC7-Marine | |
| Product group | IC7-60 | iC7-60 | |
| Product category | SL | System module, liquid-cooled | |
| Product type | 3A | 3~, regenerative, AFE | |
| Mains voltage | B5 | 380-500 V AC / 465-800 V DC | |
| Current rating | -1500 | 1500 A | |
| Power rating | XXX | Not relevant | |
| Protection rating | E00 | IP00/Open Type | |
| EMC category | F4 | C4 category | |
| Integration unit | +AEZ3 | Standard, with LCL filter | |
| Mains input device | +AJFX | AC fuses | |
| DC fuses and devices | +AKFX | DC bus fuses | |
| Cooling circuit connector type | +ANN1 | Push-in connection | |
| Cooling circuit hose length | +AONH | None | |
| Marine construction | +AFXX | None | |
| Extra environmental protection | +AGCX | Coated boards | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Standard I/O | +BDC1 | I/O and Relay Option OC7C1 | |
| Functional safety | +BEXX | None, not upgradable | |
| Control panel | +BFXX | None | |
| Control panel mounting type | +BGXX | None | |
| Control panel cable length | +BHXX | None | |
| Control unit cable length | +BK15 | 1.5 m (5 ft), Fiber | |
| StarCoupler board cable length | +BLA0 | 10.0 m (32 ft), Fiber | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBX0 | None | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDXX | None, without mounting plate | |
| Option slot E | +CEXX | None, without mounting plate | |
| Option slot F | +CFXX | None, without mounting plate | |
| Option slot G | +CGXX | None, without mounting plate | |
| Option slot H | +CHXX | None, without mounting plate | |
| Option slot I | +CIXX | None, without mounting plate | |
| Option slot J | +CJXX | None, without mounting plate | |
| Language package | +EL01 | Global | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| High speed enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Documentation language | +EHEN | English | |
| Customer-specific label | +EJXX | None | |
| Shipping package | +TACB | Cardboard box package | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | 2XAR12L | 2xAR12L | |
| Modelcode01 | IC7-60SL3AB5-1500E00F4 | ||
| Modelcode02 | +AEZ3+AJFX+AKFX+ANN1 | ||
| Modelcode03 | +AONH+BAMT+BDC1+BEXX | ||
| Modelcode04 | +BK15+BLA0+CAX0+CBX0 | ||
| Modelcode05 | +CCX0 | ||
| Modelcode06 | +DAMA | ||
| Modelcode08 | +EGIN+EHEN | ||
| Main unit Width | 2X235MM/9.3IN+309MM/12.2IN | 2X235MM/9.3IN+309MM/12.2IN | |
| Main unit Height | 1295MM/51IN+607MM/23.9IN | 1295MM/51IN+607MM/23.9IN | |
| Main unit Depth | 566MM/22.3IN+308.5MM/12.15IN | 566MM/22.3IN+308.5MM/12.15IN | |
| Calculated Gross Weight [kg] | 690 | ||
| Calculated Net Weight [kg] | 585 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| AC voltage | 3X380-500VAC | 3X380-500VAC | |
| Apparent power | 1327KVA(500VAC) | 1327KVA(500VAC) | |
| check if complete | OK | OK | |
| Cooling type | Liquid Cooled | Liquid Cooled | |
| DC Bus current | 1751A(742VDC) | 1751A(742VDC) | |
| DC Bus voltage | 465-800VDC | 465-800VDC | |
| DC power | 1300KW(742VDC) | 1300KW(742VDC) | |
| Enclosure rating | IP00 / OPEN TYPE | IP00 / OPEN TYPE | |
| HELP CHAR | 91D53A0616053 | ||
| Help Counter | 1 | ||
| Input frequency | 50/60Hz | 50/60Hz | |
| Liquid temp. High Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Low Overload | 45°C/113°F | 45°C/113°F | |
| Liquid temp. Nominal load | 45°C/113°F | 45°C/113°F | |
| Nominal AC current | 1532A(500VAC) | 1532A(500VAC) | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Product Category -DrivesSymbol | System module, liquid-cooled | System module, liquid-cooled | |
| Product Hierarchy | 91D53A0616053 | ||
| Product Type – DrivesSymbol | 3 phase regenerative, AFE | 3 phase regenerative, AFE | |
| Product View (Default) | Global (Standard) | ||
| Product View (Switch) | GLBL | Global (Standard) | |
| Salescode part 1 | IC7-60SL3AB5-1500E00F4 | IC7-60SL3AB5-1500E00F4 | |
| Salescode part 2 | +AEZ3+AJFX+AKFX+ANN1 | +AEZ3+AJFX+AKFX+ANN1 | |
| Salescode part 3 | +AONH+BAMT+BDC1+BEXX | +AONH+BAMT+BDC1+BEXX | |
| Salescode part 4 | +BK15+BLA0+CAX0+CBX0 | +BK15+BLA0+CAX0+CBX0 | |
| Salescode part 5 | +CCX0 | +CCX0 | |
| Salescode part 6 | +DAMA | +DAMA | |
| Salescode part 7 | +EGIN+EHEN | +EGIN+EHEN | |
| Short circuit current rating | 100kA | 100kA | |
| Storage temperature | -40…70°C/-40…158°F | -40…70°C/-40…158°F | |
| Typecode Part 1 | 7SM-MASL3AB5-1500E00F4 | ||
| Typecode Part 2 | -000106429 | ||
| Vendor | ERR01 | Cannot Determine Vendor |
