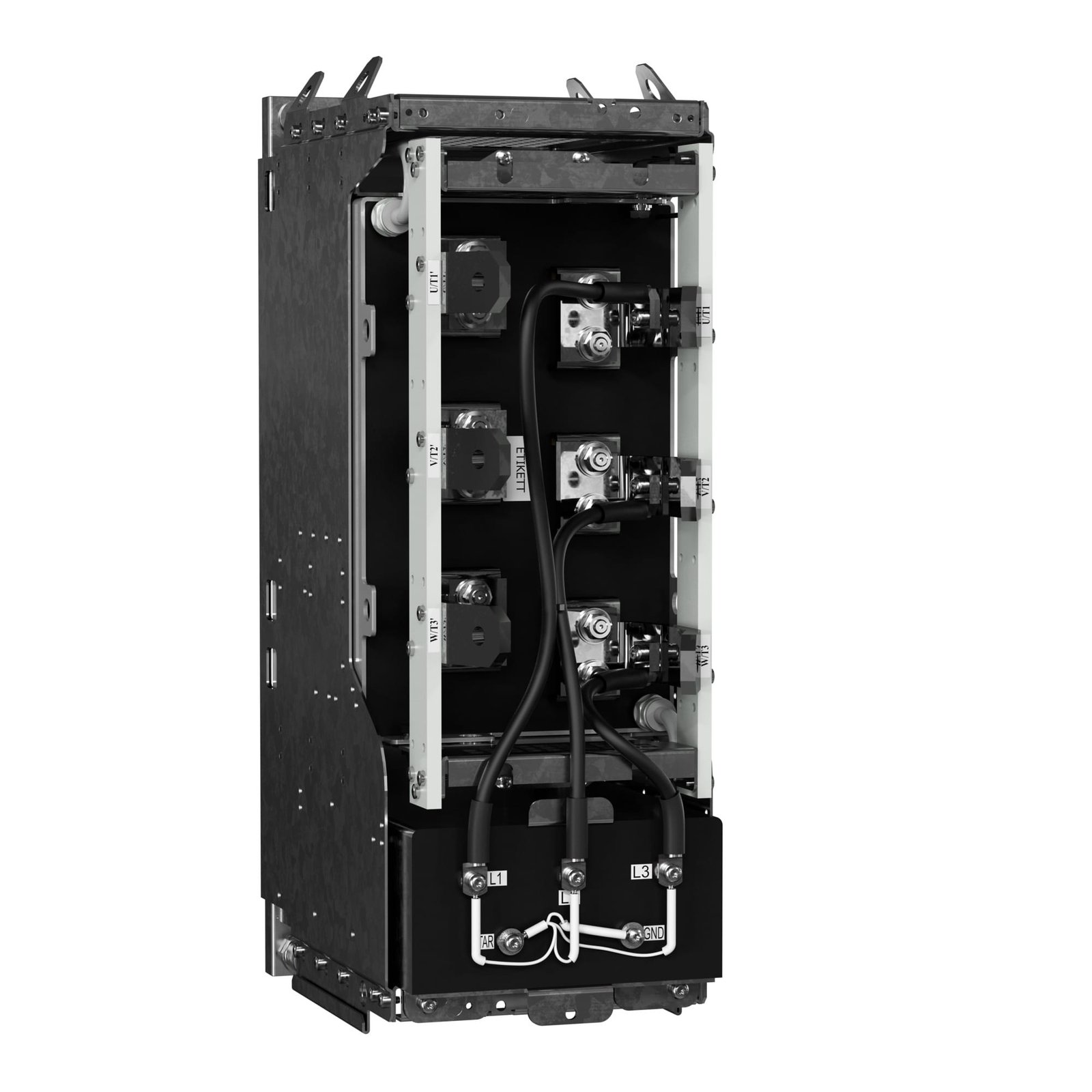

Sine-wave Filter for SM OF7S1 for System Modules
OF7S1SM-M-LC-07-800A-A1-E00-F4+AO20
Liquid-cooled
525-690 V AC 800 A
AuxBus thermal protection
IP00/Open Type
Sine Filter for Liq c. IM12L
Other options according to model code
Model code:
OF7S1SM-M-LC-07-800A-A1-E00-F4+AO20
The sine-wave filter provides a sinusoidal phase-to-phase motor supply voltage. The filter reduces motor insulation stress and acous
tical switching noise from the motor. Compatible with iC7 system modules.
| Gross weight | 150 Kilogram | ||
| Net weight | 130 Kilogram | ||
| EAN | 5715253510606 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product series | OF7S1SM | Sine-wave Filter for SM OF7S1 | |
| Product target | -M | System Modules | |
| Cooling method | -LC | Liquid-cooled | |
| Voltage class | -07 | 525-690 V AC | |
| Current rating | -800A | 800 A | |
| Thermal protection | -A1 | AuxBus thermal protection | |
| Protection rating | -E00 | IP00/Open Type | |
| EMC category | -F4 | C4 category | |
| Cooling circuit connector type | +ANNC | Threaded connection, G1/2” | |
| Cooling circuit hose length | +AO20 | 2.0 m (6 ft) | |
| Product specific marine cert. | +VBXX | None | |
| Shipping package | +TACB | Cardboard box package | |
| Frame designation | SIN12L | Sine Filter for Liq c. IM12L | |
| Salescode part 1 | OF7S1SM-M-LC-07-800A-A1-E00-F4 | OF7S1SM-M-LC-07-800A-A1-E00-F4 | |
| Salescode part 2 | +AO20 | +AO20 | |
| Typecode Part 1 | OF7S1SM-M-LC-07-800A-A1-E00-F4 | ||
| Typecode Part 2 | -000118099 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Calculated Gross Weight [kg] | 150 | ||
| Calculated Net Weight [kg] | 130 | ||
| Modelcode01 | OF7S1SM-M-LC-07-800A-A1-E00-F4 | ||
| Modelcode02 | +AO20 | ||
| Cooling type | Liquid Cooled | Liquid Cooled | |
| Main unit Depth | 433MM | 433MM | |
| Enclosure rating | IP00/OPEN TYPE | IP00/OPEN TYPE | |
| Drive circuit, nom. flow | 11,0L/MIN | 11,0L/MIN | |
| Maximum frequency | 70 HZ | 70 HZ | |
| Switching frequency | 8 KHZ | 8 KHZ | |
| Main unit Height | 669MM | 669MM | |
| Liquid temp. Nominal load | -10…+45C | -10…+45C | |
| Storage temperature | -40…+70C | -40…+70C | |
| Input Voltage | 3×525-690VAC | 3×525-690VAC | |
| Main unit Width | 235MM | 235MM | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| ECCN US | EAR99 | EAR99 | |
| ECCN EU | Y901 | Y901 | |
| Options | ACPWO | Power options |
