Frequency Converter
VACON0020-3L-0003-4+EMC2+QPESMI01-0003-4+IP20+EMC2
(0020) Vacon 020
3 Phase AC Input, 380–480 Vac
3 Amp, IP20/UL Open Type,EMC 2 Class
(+DBNO) No Brake, 50 Hz,MI01
Other options according to Model code
Model code:
VACON0020-3L-0003-4+EMC2+QPES

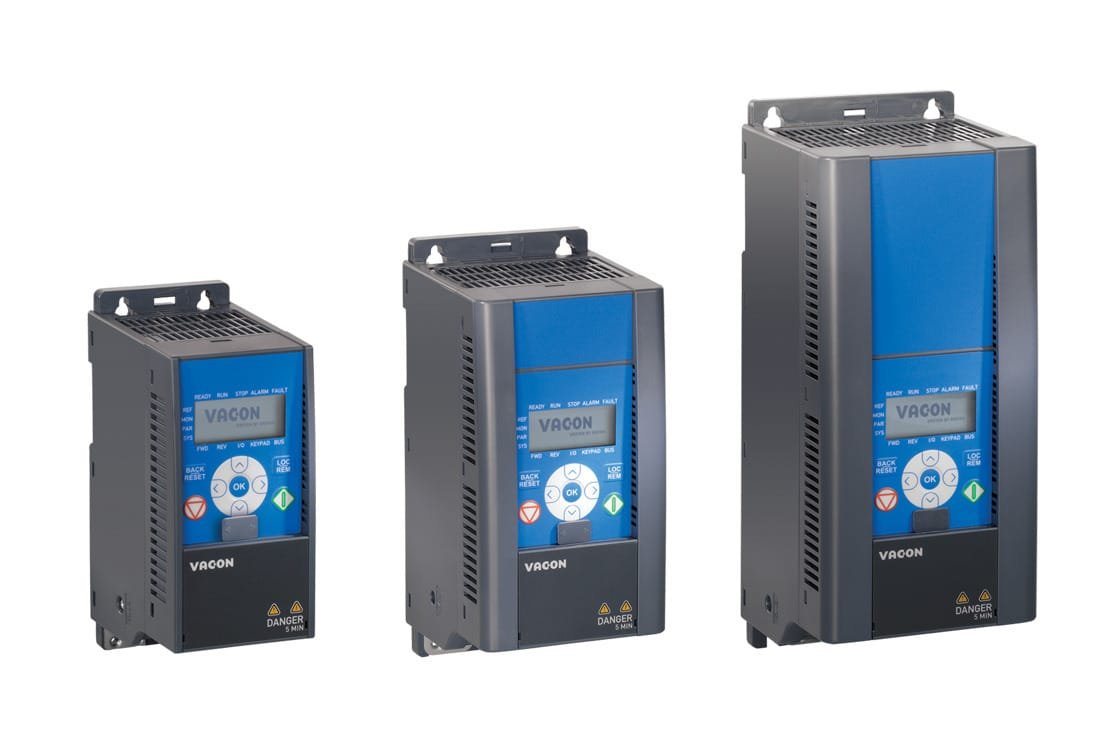

VACON® 20 comes with compactness and programming functionality that
makes it one of the most easily adaptable drives available for OEM
applications.
The VACON® 20 has a built-in PLC functionality according to IEC 61131-1
which brings cost savings to the user.
For the OEM or machine builder it is easy to change the software logic
of the drive to adapt to their own control needs. The VACON® 20 supports
a wide variety of fieldbus connections, which enable effective machine
integration, eliminating the need for external fieldbus gateways and
parallel I/O connections.
With the optional copying module, parameter configurations can be copied
into the VACON® 20 during the installation phase with no need for mains
power – saving both time and effort.
| Gross weight | 0.63 Kilogram | ||
| Net weight | 0.6 Kilogram | ||
| Volume | 2.458 Liter | ||
| EAN | 5710108155452 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | VACON | (VACON) Vacon | |
| Product Range | 0020 | (0020) Vacon 020 | |
| Segment | NONE | (NONE) Vacon 10/20 | |
| Customized | +BM25 | (+BM25) Vacon0020 product | |
| Regional | -R00 | International | |
| Input | -3L | 3 Phase AC Input | |
| Voltage | -4 | 380–480 Vac | |
| Current | -0003 | 3 Amp | |
| Current Description | 2,4 AMP | 2,4 AMP | |
| API Selection | +SM20 | API for Vacon0020 | |
| E Slot Option Board | +SE00 | No Option | |
| Mounting | -DM | Drive Module | |
| Enclosure | +IP20 | IP20/UL Open Type | |
| EMC Level | +EMC2 | EMC 2 Class | |
| Enclosure Accessory A | +QPES | (+QPES) PE Plate Kit | |
| Enclosure Accessory B | +Q000 | (+Q000) No Additional Option | |
| Documentation Language | +DLUK | (+DLUK) English | |
| Documentation level | +DQCK | (+DQCK) Quick Guide | |
| Label Language | +LLUK | (+LLUK) English | |
| SW package | +F0107 | (+F0107)VACON 20 SW package | |
| Application | +A0000 | (+A0000)No Special Application | |
| Brake | +DBNO | (+DBNO) No Brake | |
| Display Units | +LSSI | (+LSSI)Metric Units of Measure | |
| Frequency Setting | +LS50 | 50 Hz | |
| Parameter Set | +L0000 | (+L0000) No Parameter Set | |
| Shipping Package | +GSCB | Cardboard Box as Shipping pack | |
| UL Approval | +GAUL | (+GAUL) UL Approval | |
| CE Aproval | +GACE | (+GACE) CE Approval | |
| C-tick Approval | +GACT | (+GACT) C-Tick Approval | |
| KC Approval | +GAKC | (+GAKC) KC Approval | |
| Standard Warranty | +WT01 | (+WT01) Warranty 12/18 Months | |
| Frame Size | MI01 | MI01 | |
| Typecode Part 1 | 70-AC3L00034W01A120BM25 | ||
| Typecode Part 2 | -00056879 | ||
| Modelcode01 | VACON0020-3L-0003-4 | ||
| Modelcode03 | +EMC2+QPES | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Product View (Default) | Global (Standard) | ||
| Salestext | MI01-0003-4+IP20+EMC2 | MI01-0003-4+IP20+EMC2 | |
| Calculated Net Weight [kg] | 0.63 | ||
| Calculated Gross Weight [kg] | 0.83 | ||
| Product Hierarchy | 87D4586303896 | ||
| HELP CHAR | 87D4586303896 | ||
| Motor Power High Overload [kW] | 0.75 | 0.75 | |
| Dimensions WxHxD [mm] | 66 X 160 X 98 | 66 X 160 X 98 | |
| Continuous Current (NO) [A] | 25 | 25 | |
| Plant from Orderline | E601 | E601 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Help Counter | 1 | ||
| PREFIX AS PART OF STOCKCODE | 70- | PREFIX FOR VXS020 | |
| VXS020 FRAME TYPE | A | Frame type A | |
| Material Net Weight | 0.6 | ||
| check if complete | OK | OK | |
| ECCN US | 3A999.a | 3A999.a | |
| ECCN EU | Y901 | Y901 | |
| DrivePro category | EXCH | Exchange Unit |
